Nipple Outlets
【Technology brief】
ASME B16.11 SS Nipple Outlets
【Materia】
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
【Size】
1/2″ to 24″
Description
HGFF Group Co.,Ltd. has an unwavering commitment to quality, achieving monumental breakthroughs in production patterns through innovation and technology.

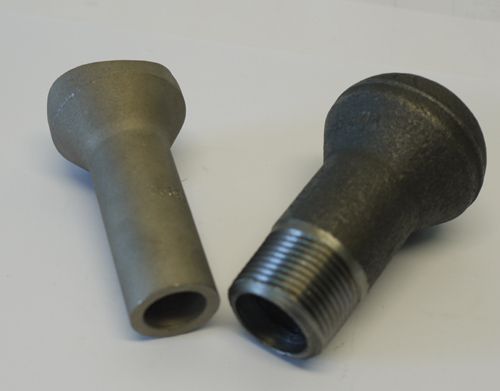

Our people have been consistent in keeping the bar high, with their professional expertise helping us to render quality at every step. We are manufacturers of Nipples, a one-piece branch connection fitting with an end that is either threaded or plain.
These olets dispense valuable services and heavy-duty and extra heavy-duty applications in the power generation, chemical and oil industry. We are suppliers of Stainless Steel Nipolets that
create a 90° angled branch on the main run and their long bodies are easy to
thread. Abiding by the MSSSP-97 specification,
we are exporters of Alloy Steel Nipples that clamp on the main pipes of drains lines, pressure vessels and taps.HG
Specification
Standard Specification For Nipple Outlets
Size : 1/2″ to 24″
Pressure Class : 3000 LBS, 6000 LBS, 9000 LBS
Form : Nipple Outlets, Nipple Outlets.Material & Grades of Nipple Outlets :Stainless Steel Nipple Outlets :
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L.Duplex & Super Duplex Steel Nipple Outlets :
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
Carbon Steel Nipple Outlets :
ASTMA 105 / A694 / Gr. F42 / 46 / 52 / 56 / 60 / 65 / 70.
Low Temperature Carbon Steel Nipple Outlets :
A350 LF3 / A350 LF2.
Alloy Steel Nipple Outlets :
ASTM / ASME A / SA 182 F1 / F5 / F9 / F11 / F22 / F91.
Nickel Alloy Nipple Outlets :
ASTM / ASME SB 564 / 160 / 472 – UNS 10276 (HASTELLOY C276), UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201),
UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600), UNS 6601
(INCONEL 601), UNS 6625 (INCONEL 625).
Copper Nickel Nipple Outlets :
ASTM / ASME SB 61 / 62 / 151 / 152 – C70600 (CU-NI-90/10 Cupro Nickel Outlets), C71500 (CU-NI-70/30 Copper
Nickel Outlets).
ASME B16.11 SS Nipple Outlets Available Types
| ASME B16.11 Nipple Outlets | MSS SP-97 SS 304 Nipple Outlets |
| Stainless Steel Nipple Outlets Suppliers | ASTM A105 CS Nipple Outlets |
| ANSI B16.11 Nipple Outlets Dealer | ASME B16.11 Nipple Outlets Exporter |
| Nipple Outlets Stockholder | Nipple Outlets Distributors |
| Carbon Steel Swaged Nipple Outlets | High Quality Nipple Outlet Manufacturer |
| ASTM A182 Stainless Steel Nipple Outlets | Duplex Steel Nipple Outlets |
| Super Duplex Nipple Outlet | Copper Nickel Nipple Outlets |
| High Nickel Alloy Nipple Outlet | Hastelloy Nipple Outlets Stockist |
| Titanium Nipple Outlets | Inconel Nipple Outlet |
| Nipple Outlets | Swaged Nipple Outlets |
| Nipolet Branch Outlet Fittings | SS 310S Nipple Outlets |
Technical Parameters
Nipolet Dimensions
Olets Branch Connection – Nipolet Dimensions
| Nominal Pipe Size | Face to Crotch (L) | |
|---|---|---|
| 3000 Lbs | 6000 Lbs | |
| 1/8″ | 19 | – |
| 1/4″ | 19 | – |
| 3/8″ | 21 | – |
| 1/2″ | 25 | 32 |
| 3/4″ | 27 | 37 |
| 1″ | 33 | 40 |
| 1 1/4″ | 33 | 41 |
| 1 1/2″ | 35 | 43 |
| 2″ | 38 | 52 |
| 2 1/2″ | 46 | – |
| 3″ | 51 | – |
| 4″ | 57 | – |
General notes:
- Dimensions: Top Row in Inches / Bottom Row in millimeters.
- Root Gap – X – “Space” for welding the O’let is raised off the run pipe to establish proper
weld gap by placing spacers, e.g. welding rods, under the fitting. This provides a uniform
welding gap between the curvature of the run and base of the fitting. - L = Dimensions Center Line of Run Pipe + X (Root Gap) + A (height of Nipolet).
- Beveled Ends ASME B16.9 and B16.25.
- The source comes from Bonney Forge (except the sizes in millimeters).
Application
Nipple Outlets Application
Buttweld Long Radius Pipe Elbow Application
ASME B16.11 Nipple Outlets are known to deliver exceptional performance and are generally developed for
meeting the demands. We offer a broad range of Nipple Outlets through a worldwide network of stock-keeping
branches. These Nipple Outlets is used in various industries like :
Stainless Steel Nipple Outlets uses in Oil and Gas Pipeline
Nipple Outlets uses in Chemical Industry
Alloy Steel Nipple Outlets uses in Plumbing
Nipple Outlets uses in Heating
SS Nipple Outlets uses in Water Supply Systems
ASME B16.11 Nipple Outlets uses in Power Plant
CS Nipple Outlets in Paper & Pulp Industry
Alloy 20 Nipple Outlets uses in General Purpose Applications
Carbon Steel Nipple Outlets uses in Fabrication Industry
Titanium Nipple Outlets uses in Food Processing Industry
Buttweld 45° Short Radius Elbow uses in Structural Pipe
Material
ASME B16.9 Nipolet Available In Different Materials :
|
|
|
